Xi lanh ELGA-TB-KF-70-1200-0H (8041857)
Xi lanh ELGA-TB-KF-70-1200-0H (8041857)

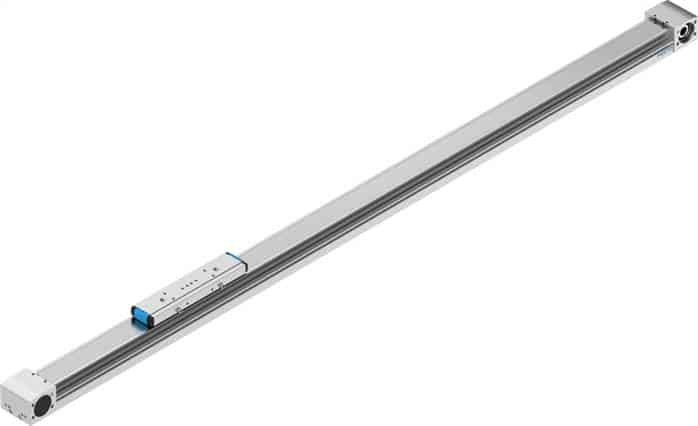

Thông số kỹ thuật xi lanh festo ELGA-TB-KF-70-1200-0H – Festo 8041857 toothed belt axis
đại lý ELGA-TB-KF-70-1200-0H – đại lý 8041857
nhà phân phối ELGA-TB-KF-70-1200-0H – xi lanh festo 8041857
| Actuator pinion effective diameter [mm] |
28,65 |
| [mm] |
1.200 |
| size |
70 |
| Hành trình reserve [mm] |
0 |
| V-belt bending [%] |
0,213 |
| V-belt separation [mm] |
3 |
| Vị trí lắp đặt |
arbitrary |
| Guide |
ball guide |
| Thiết lập |
Electro-mechanical linear axis |
| Motor type |
Step motor |
| Measurement principle travel measurement system |
Incremental |
| Max. acceleration [m/s²] |
50 |
| Max. speed [m/s] |
5 |
| Repeatability |
±0.08 mm |
| Power-on time |
100 % |
| Protection category |
IP40 |
| Nhiệt độ [°C] |
-10 to 60 |
| Flat torque 2nd grade ly [mm4] |
146050 |
| Flat torque 2nd grade lz [mm4] |
459290 |
| Max. actuator torque [Nm] |
5,02 |
| Max. force Fy [N] |
1.500 |
| Max. force Fz [N] |
1.850 |
| Max. empty run shift resistance [N] |
41,9 |
| Max. torque Mx [Nm] |
16 |
| Max. torque My [Nm] |
132 |
| Max. torque Mz [Nm] |
132 |
| Max. feed force Fx [N] |
350 |
| Empty run actuator torque [Nm] |
0,6 |
| Torsional moment of inertia to [mm4] |
103.880 |
| Mass inertia JH per metre stroke [kg/cm²] |
0,19 |
| Mass inertia JL per kg usable load [kg/cm²] |
2,05 |
| Mass inertia JO [kg/cm²] |
2,43 |
| Mass inertia JW for additional carriages [kg/cm²] |
1,86 |
| Feed constant [mm/U] |
90 |
| Lubrication interval running section depending [km] |
1.000 |
| Carriage weight [g] |
900 |
| Additional carriage weight [g] |
740 |
| Weight supplement per 10 mm stroke [g] |
39 |
| Base weight at 0 mm stroke [g] |
2.970 |
| Profile material |
Aluminium wrought alloy |
| Thông tin vật liệu |
LABS containing materials included |
| Masking tape material |
Rust-free stainless steel band |
| Actuator cover material |
Aluminium wrought alloy |
| Carriage guide material |
Stainless steel |
| Guide carriage material |
Stainless steel |
| Belt pulley material |
High-alloyed stainless steels |
| Carriage material |
Aluminium wrought alloy |
| V-belt clamping body material |
Cast stainless steel |
| V-belt material |
Polychloroprene with glas cord and nylon covering |
