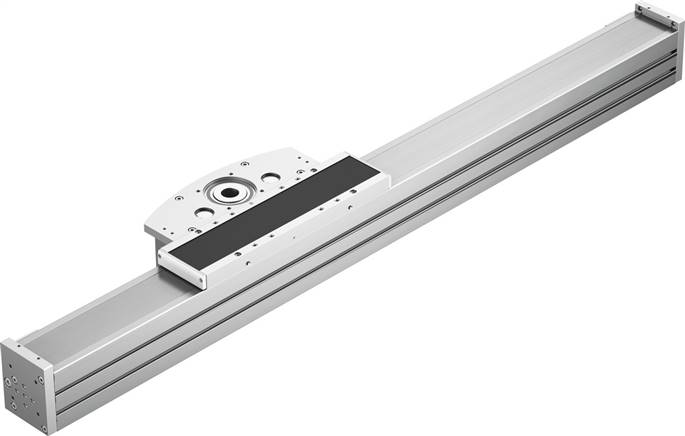

Xi lanh ELCC-TB-KF-110-2000-0H (8082418)
Thông số kỹ thuật xi lanh festo ELCC-TB-KF-110-2000-0H – Festo 8082418 cantilever axis
đại lý ELCC-TB-KF-110-2000-0H – đại lý 8082418
nhà phân phối ELCC-TB-KF-110-2000-0H – xi lanh festo 8082418
Actuator pinion effective diameter [mm] | 68,755 |
[mm] | 2.000 |
size | 110 |
Hành trình reserve [mm] | 0 |
V-belt separation [mm] | 8 |
Vị trí lắp đặt | arbitrary |
Guide | ball guide |
Thiết lập | Elektromechanische Auslegerachse |
Max. acceleration [m/s²] | 30 |
Max. speed [m/s] | 5 |
Repeatability | ±0.05 mm |
Lớp chống ăn mòn KBK | 0 – No corrosion stressing |
Protection category | IP20 |
Nhiệt độ [°C] | -10 to 60 |
Flat torque 2nd grade ly [mm4] | 6.83057e+006 |
Flat torque 2nd grade lz [mm4] | 4.92597e+006 |
Max. actuator torque [Nm] | 85,9 |
Max. force Fy [N] | 20.596 |
Max. force Fz [N] | 20.022 |
Max. torque Mx [Nm] | 317 |
Max. torque My [Nm] | 2.368 |
Max. torque Mz [Nm] | 2.286 |
Max. feed force Fx [N] | 2.500 |
Mass inertia JH per metre stroke [kg/cm²] | 174,9 |
Mass inertia JL per kg usable load [kg/cm²] | 11,8 |
Mass inertia JO [kg/cm²] | 157,1 |
Feed constant [mm/U] | 216 |
Guideline running performance [km] | 5.036 |
Lubrication interval running section depending [km] | 1.000 |
Moving mass at 0 mm stroke [g] | 10.017 |
Weight supplement per 10 mm stroke [g] | 148 |
Base weight at 0 mm stroke [g] | 27.299 |
Supplement moved mass per 10 mm stroke [g] | 148 |
Closing cover material | Aluminium wrought alloy, anodised |
Profile material | Aluminium wrought alloy, anodised |
Thông tin vật liệu | LABS containing materials included RoHs compliant |
Actuator head material | Aluminium wrought alloy, anodised |
Guide carriage material | Wälzlagerstahl, Corrotect beschichtet |
Vật liệu thân | High-alloyed stainless steels |
Carriage material | Aluminium-Guss, eloxiert |
V-belt clamping body material | Aluminium wrought alloy, anodised |
V-belt material | Polychloroprene with glas cord and nylon covering |
