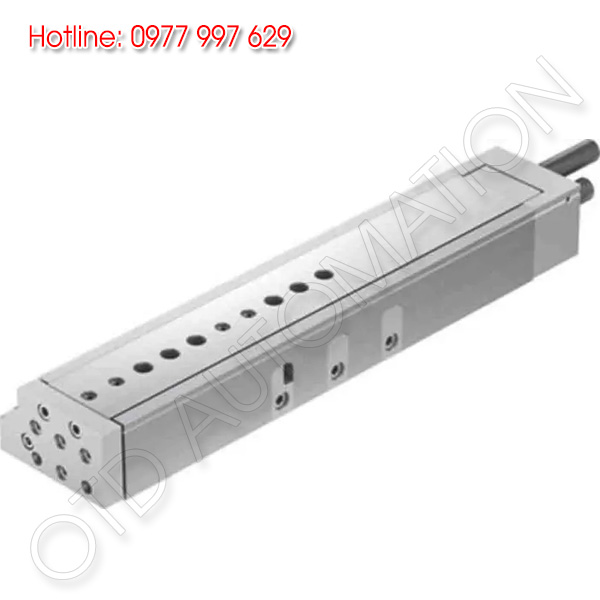

Xi lanh DGSL-20-200-P1A

Thông số kỹ thuật xi lanh Festo DGSL-20-200-P1A

Stroke [mm]	200
Alignable end position range / Length front [mm]	138,5
Alignable end position range / Length rear [mm]	49,5
Piston diameter	25 mm
Operating mode actuator unit	Joch
Dampening	P1: Elastic silencer rings / plates double-sided With fixed limit stop
installation position	arbitrary
Guide	Ball cage guide
Construction set up	Joch kinematics
Position detection	For proximity switch
Operating pressure [bar]	1 to 8
Max. speed [m/s]	0,8
Repeatability	±0.01 mm
Principle of operation	double acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	0 – No corrosion stressing
ambient temperature [°C]	0 to 60
Impact energy at the end positions [J]	0,200
Dampening length [mm]	5,0
Max. force Fy [N]	4.600
Max. force Fz [N]	4.600
Max. torque Mx [Nm]	90
Max. torque My [Nm]	80,0
Max. torque Mz [Nm]	80,0
Theoretical force at 6 bar, Return flow [N]	247
Theoretical force at 6 bar, flow [N]	295
Moving mass [g]	1.807
Product weight [g]	4.402
Alternative connections	See product drawing
Fastening type	With throughway bores
Pneumatic connection	G1/8
Material information	Copper and PTFE-free RoHs compliant
Cover material	Aluminium wrought alloy
Seals material	HNBR
Housing material	Aluminium wrought alloy
Piston rod material	High-alloyed stainless steels
