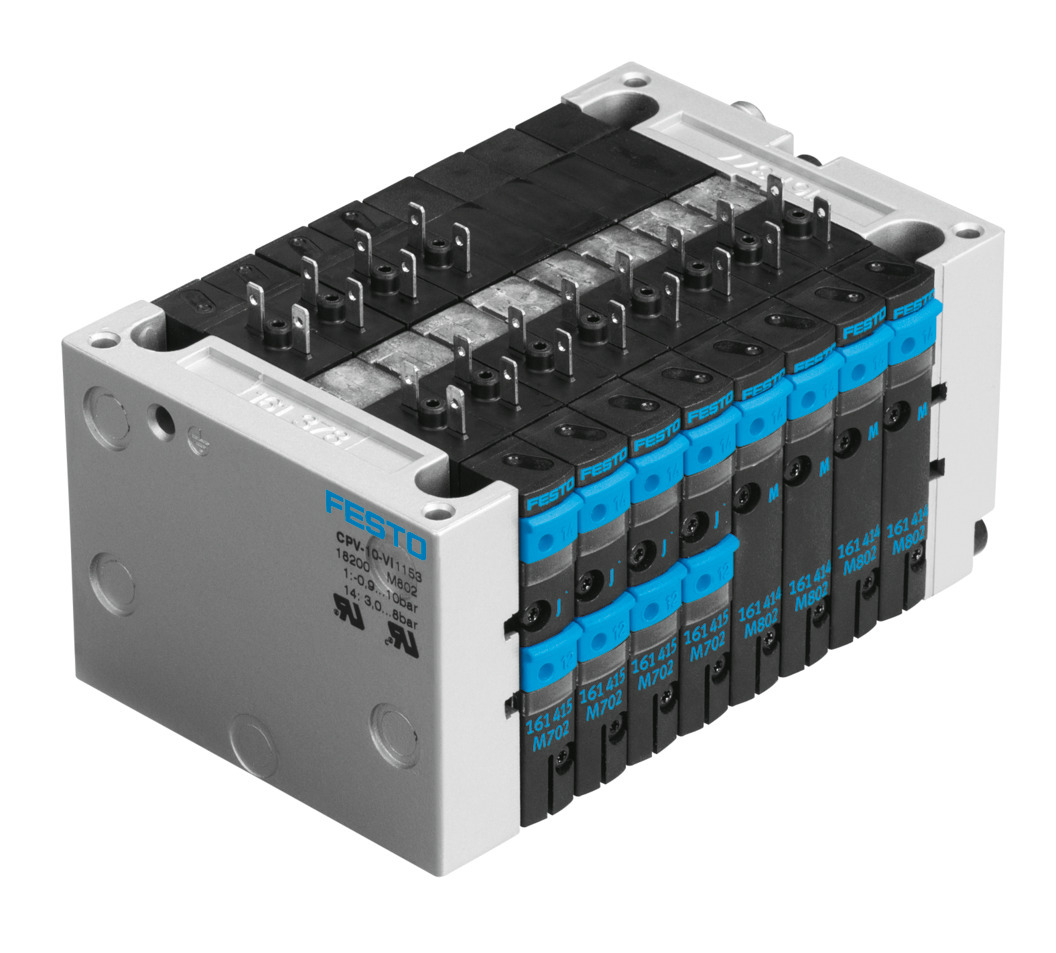

Bộ van điện CPV10-VI

Thông số kỹ thuật van điện Festo CPV10-VI

Electrical I/O systemyes
Terminal type10
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature -5 °C … 50 °C
Ambient temperature -5 °C … 50 °C
Storage temperature -20 °C … 40 °C
Degree of protection IP65
Corrosion resistance class CRC1 – Low corrosion stress 2 – Moderate corrosion stress
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Operating pressure -0.09 MPa … 1 MPa
Operating pressure -0.9 bar … 10 bar
Note on operating pressure 0 – 0.8 MPa with ext. pilot air 0 – 8 bar with external pilot air
Pilot pressure0.3 MPa … 0.8 MPa
Pilot pressure3 bar … 8 bar
LABS (PWIS) conformity VDMA24364-B1/B2-L
Bộ van Festo 18200 10P-10-8C-MP-N-Y-8M+U
Bộ van Festo 18200 10P-10-4B-MP-N-Y-4M+U
