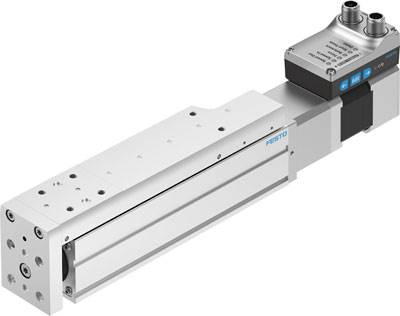

Xi lanh EGSS-BS-KF-45-125-10P-ST-M-H1# (8083818) unit
Xi lanh EGSS-BS-KF-45-125-10P-ST-M-H1# (8083818) unit
Thông số kỹ thuật xi lanh festo EGSS-BS-KF-45-125-10P-ST-M-H1# – Festo 8083818 mini slide unit
đại lý EGSS-BS-KF-45-125-10P-ST-M-H1# – đại lý 8083818 unit
nhà phân phối EGSS-BS-KF-45-125-10P-ST-M-H1# – xi lanh festo 8083818 unit
| [mm] |
125 |
| size |
45 |
| Hành trình reserve [mm] |
0 |
| Reversing play [µm] |
150 |
| Spindle diameter [mm] |
10 |
| Spindle pitch [mm/U] |
10 |
| Vị trí lắp đặt |
arbitrary |
| Guide |
ball guide |
| Thiết lập |
Elektrischer Mini-Schlitten |
| Motor type |
Step motor |
| Referencing |
Fixed stopper block negative |
| Spindle type |
Ball screw drive |
| Cảm biến |
für Näherungsschalter |
| Rotor position transducer |
Encoder absolut single turn |
| Rotor position transducer measurement principle |
Magnetic |
| Additional functions |
Bedienoberfläche |
| Display |
LED |
| Operation-readiness display |
LED |
| Max. acceleration [m/s²] |
5 |
| Max. speed [m/s] |
0,25 |
| Repeatability |
±0.015 mm |
| Properties digital logic outputs |
nicht galvanisch getrennt |
| Power-on time |
100 % |
| Insulation protection class |
B |
| Max. current digital logic outputs [mA] |
100 |
| Max. power input [mA] |
3.000 |
| Nominal voltage DC [V] |
24 |
| Nominal current [A] |
3 |
| Parameterising interface |
IO-Link |
| Rotor position transducer resolution [Bit] |
16 |
| Permitted voltage oscillations |
± 15 % |
| Voltage supply, connection type |
Plug |
| Voltage supply, connection technology |
M12x1, T-codiert nach EN 61076-2-111 |
| Voltage supply, number of poles/wires |
4 |
| Permission |
RCM mark |
| KC-mark |
KC-EMV |
| Giấy chứng nhận CE (see declaration of conformity) |
acc. to EU-EMV Directive |
| Oscillation strength |
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27 |
| Lớp chống ăn mòn KBK |
0 – No corrosion stressing |
| Nhiệt độ vòng bi [°C] |
-20 to 60 |
| Relative humidity |
0 – 90 % |
| Protection category |
IP40 |
| Protection class |
III |
| Nhiệt độ [°C] |
0 to 50 |
| Information about Nhiệt độ |
Oberhalb der Umgebungstemperatur von 30 °C ist eine Leistungsreduktion von 2 % pro K einzuhalten. |
| Dynamic load factor fixed bearing [N] |
7.413 |
| Dynamic load factor linear guide [N] |
3.240 |
| Dynamic load factor ball screw drive [N] |
3.200 |
| Max. force Fy [N] |
1.314 |
| Max. force Fz [N] |
1.314 |
| Max. torque Mx [Nm] |
8,14 |
| Max. torque My [Nm] |
7,05 |
| Max. torque Mz [Nm] |
7,05 |
| Max. radial force on drive shaft [N] |
340 |
| Max. feed force Fx [N] |
120 |
| Guideline payload, horizontal [KGM] |
6 |
| Guideline payload, vertical [KGM] |
6 |
| Static load factor ball screw drive [N] |
5.900 |
| Static load factor linear guide [N] |
5.630 |
| Feed constant [mm/U] |
10 |
| Static load factor fixed bearing [N] |
3.966 |
| Guideline running performance [km] |
5.000 |
| Maintenance interval |
Lifetime lubrication |
| Moving mass at 0 mm stroke [g] |
212 |
| Weight supplement per 10 mm stroke [g] |
63 |
| Base weight at 0 mm stroke [g] |
1.238 |
| Trọng lượng sản phẩm [g] |
2.024 |
| Supplement moved mass per 10 mm stroke [g] |
30 |
| Quantity digital logic outputs 24 V DC |
2 |
| Quantity digital logic inputs |
2 |
| Logic input specification |
in Anlehnung an IEC 61131-2, Typ 1 |
| Work area logic input [V] |
24 |
| IO-Link, SIO mode support |
yes |
| Properties logic inputs |
nicht galvanisch getrennt |
| IO-Link, report |
Device V 1.1 |
| IO-Link, communication mode |
COM3 (230.4 kBaud) |
| IO-Link, port type |
A |
| IO-Link, number of ports |
1 |
| IO-Link, process data width OUT |
2 Bytes |
| IO-Link, process data contents OUT |
1 bit (Move in) |
| IO-Link, process data width IN |
2 Bytes |
| IO-Link, process data contents IN |
1 bit (State Device) |
| IO-Link, service data unit IN |
32 bit Force |
| IO-Link, minimum cycle time |
1 ms |
| IO-Link, data memory needed [Byte] |
500 |
| Max. line length |
20 m bei IO-Link Betrieb |
| Switching logic outputs |
PNP (Positive switching) |
| Switching logic inputs |
PNP (Positive switching) |
| IO-Link, connection technology |
Plug |
| Logikschnittstelle, Anschlussart |
Plug |
| Logikschnittstelle, Anschlusstechnik |
M12x1 A coded to EN 61076-2-101 |
| Logikschnittstelle, Anzahl Pole/Adern |
8 |
| Logikschnittstelle, Anschlussbild |
00992264 |
| Loại buộc |
with female threads |
| Thông tin vật liệu |
LABS containing materials included |
| Carriage guide material |
Roller bearing steel |
| Guide carriage material |
Roller bearing steel |
| Vật liệu thân |
Aluminium wrought alloy, anodised |
| Joch plate material |
Aluminium wrought alloy, anodised |
| Vật liệu thanh pít-tông |
High-alloyed stainless steels |
| Carriage material |
Aluminium wrought alloy, anodised |
| Spindle nut material |
Roller bearing steel |
| Spindle material |
Roller bearing steel |
