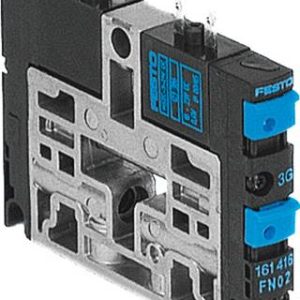

Van điện CPV10-M1H-2×3-GLS-M7
Van điện CPV10-M1H-2×3-GLS-M7
Thông số kỹ thuật van khí nén Festo CPV10-M1H-2×3-GLS-M7
| Valve function | 2×3/2 closed monostable |
| Actuation type | Electrical |
| Valve size [mm] | 10 |
| Normal nominal flow [l/min] | 400 |
| Operating pressure [bar] | -0.9 to 10 |
| Construction set up | Piston pusher |
| Reset mode | Pneumatic spring |
| Protection category | IP65 |
| Nominal width [mm] | 4 |
| Exhaust function | Cannot be throttled |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation | Ratcheting tentative |
| Control type | pilot operated |
| Control air supply | external Internal |
| Flow direction | Not reversible |
| Überdeckung | positive Überdeckung |
| Control pressure [bar] | 3 to 8 |
| b-value | 0.4 |
| C-value [] | 1,60 |
| Shifting time off [ms] | 25 |
| Shifting time on [ms] | 17,0 |
| Power-on time | 100% with holding current reduction |
| Electrical power consumption [W] | 0,46 |
| Max. positive test impulse at 0 signal [Mikrosekun] | 1.400 |
| Max. negative test impulse for 1 signal [Mikrosekun] | 700 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 – moderate corrosion stress |
| Bearing temperature [°C] | -20 to 40 |
| Medium temperature [°C] | -5 to 50 |
| ambient temperature [°C] | -5 to 50 |
| Product weight [g] | 70 |
| Fastening type | With throughway bores |
| Support air control connection 12/14 | Hunt group |
| Exhaust control connection 82/84 | Hunt group |
| Pneumatic connection 1 | Hunt group |
| Pneumatic connection 2 | M7 |
| Pneumatic connection 3/5 combined | Hunt group |
| Pneumatic connection 4 | M7 |
| Material information | RoHs compliant |
| Seals material | HNBR NBR |
| Housing material | POM PPS, Aluminium die casting brass, Steel |
| đại lý CPV10-M1H-2×3-GLS-M7 | đại lý van khí nén Festo |
