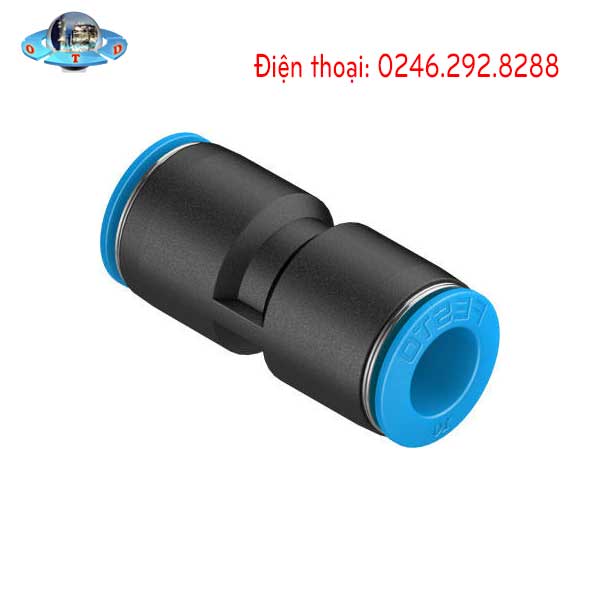

Đầu nối khí Festo QS-10

Thông số kỹ thuật đầu nối thắng QS-10 – QS-10 (Festo 153034) P/in connector

size	Standard
Nominal width [mm]	6,7
installation position	arbitrary
Packing size	10
Construction set up	Push-pull principle
Operating pressure complete temperature range [bar]	-0.95 to 6
Temperature depending operating pressure [bar]	-0.95 to 14
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-] Water according to manufacturer declaration at www.festo.com
Information about operating and control medium	Oiled operation possible
Corrosion resistant class KBK	1 – low corrosion stress
ambient temperature [°C]	-10 to 80
Maritime classification	see Certificate
Product weight [g]	16,0
Pneumatic connection 1	For hose exterior diameter 10 mm
Pneumatic connection 2	For hose exterior diameter 10 mm
Sleeve colour	blue
Material information	RoHs compliant
Housing material	PBT
Sleeve material	POM
Tube seal, hose seal material	NBR
Hose clamping segment material	High-alloyed stainless steels
