Xi lanh ELGC-TB-KF-60-1800 (8062784)
Xi lanh ELGC-TB-KF-60-1800 (8062784)

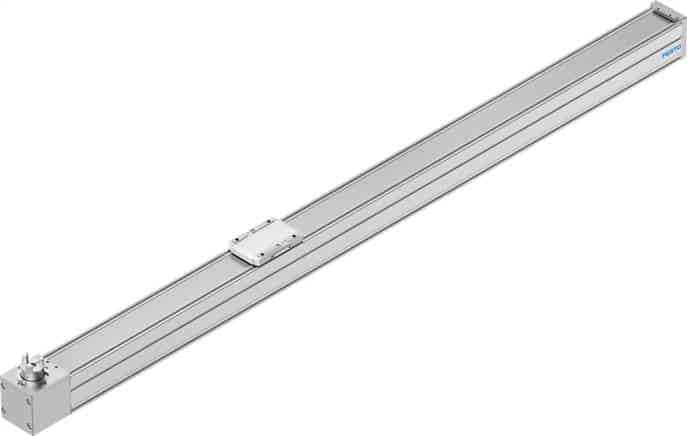

Thông số kỹ thuật xi lanh festo ELGC-TB-KF-60-1800 – Festo 8062784 toothed belt axis
đại lý ELGC-TB-KF-60-1800 – đại lý 8062784
nhà phân phối ELGC-TB-KF-60-1800 – xi lanh festo 8062784
| Actuator pinion effective diameter [mm] |
24,83 |
| [mm] |
1.800 |
| size |
60 |
| Hành trình reserve [mm] |
0 |
| V-belt bending [%] |
0,124 |
| V-belt separation [mm] |
3 |
| Vị trí lắp đặt |
arbitrary |
| Guide |
ball guide |
| Thiết lập |
Electro-mechanical linear axis |
| Motor type |
Step motor |
| Measurement principle travel measurement system |
Incremental |
| Max. acceleration [m/s²] |
15 |
| Max. speed [m/s] |
1,5 |
| Repeatability |
±0.1 mm |
| Power-on time |
100 % |
| Protection category |
IP40 |
| Nhiệt độ [°C] |
0 to 50 |
| Flat torque 2nd grade ly [mm4] |
441000 |
| Flat torque 2nd grade lz [mm4] |
542000 |
| Max. actuator torque [Nm] |
1,490 |
| Max. force Fy [N] |
600 |
| Max. force Fz [N] |
1.800 |
| Max. empty run shift resistance [N] |
15,6 |
| Max. torque Mx [Nm] |
29,1 |
| Max. torque My [Nm] |
31,8 |
| Max. torque Mz [Nm] |
31,8 |
| Max. feed force Fx [N] |
120 |
| Empty run actuator torque [Nm] |
0,194 |
| Torsional moment of inertia to [mm4] |
29.800 |
| Mass inertia JH per metre stroke [kg/cm²] |
0,0851 |
| Mass inertia JL per kg usable load [kg/cm²] |
1,5411 |
| Mass inertia JO [kg/cm²] |
0,8804 |
| Feed constant [mm/U] |
78 |
| Moving mass [g] |
482 |
| Moving mass at 0 mm stroke [g] |
482 |
| Carriage weight [g] |
139 |
| Weight supplement per 10 mm stroke [g] |
43 |
| Base weight at 0 mm stroke [g] |
1.775 |
| Trọng lượng sản phẩm [g] |
9.429 |
| Interface code actuator |
T42 |
| Closing cover material |
Die cast aluminium, painted |
| Profile material |
Aluminium wrought alloy, anodised |
| Thông tin vật liệu |
LABS containing materials included |
| Masking tape material |
Rust-free stainless steel band |
| Actuator cover material |
Die cast aluminium, painted |
| Carriage guide material |
Quenched and tempered steel |
| Guide carriage material |
Quenched and tempered steel |
| Belt pulley material |
High-alloyed stainless steels |
| Carriage material |
Aluminium die casting |
| V-belt material |
Polychloroprene with glass fibre |
