Xi lanh ELGC-TB-KF-45-1200 (8062774)
Xi lanh ELGC-TB-KF-45-1200 (8062774)

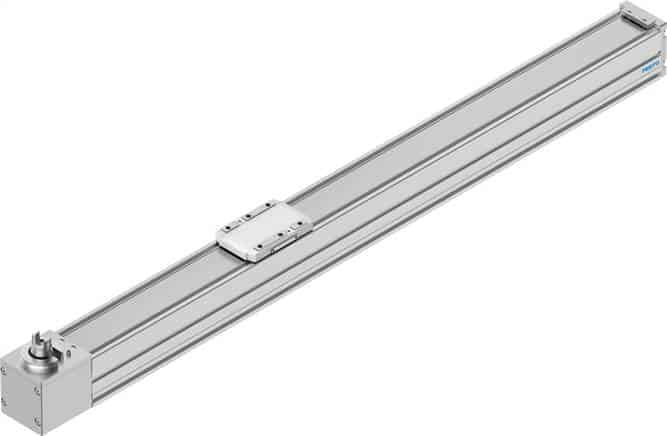

Thông số kỹ thuật xi lanh festo ELGC-TB-KF-45-1200 – Festo 8062774 toothed belt axis
đại lý ELGC-TB-KF-45-1200 – đại lý 8062774
nhà phân phối ELGC-TB-KF-45-1200 – xi lanh festo 8062774
| Actuator pinion effective diameter [mm] |
19,10 |
| [mm] |
1.200 |
| size |
45 |
| Hành trình reserve [mm] |
0 |
| V-belt bending [%] |
0,187 |
| V-belt separation [mm] |
2 |
| Vị trí lắp đặt |
arbitrary |
| Guide |
ball guide |
| Thiết lập |
Electro-mechanical linear axis |
| Motor type |
Step motor |
| Measurement principle travel measurement system |
Incremental |
| Max. acceleration [m/s²] |
15 |
| Max. speed [m/s] |
1,2 |
| Repeatability |
±0.1 mm |
| Power-on time |
100 % |
| Protection category |
IP40 |
| Nhiệt độ [°C] |
0 to 50 |
| Flat torque 2nd grade ly [mm4] |
140000 |
| Flat torque 2nd grade lz [mm4] |
170000 |
| Max. actuator torque [Nm] |
0,716 |
| Max. force Fy [N] |
300 |
| Max. force Fz [N] |
600 |
| Max. empty run shift resistance [N] |
7,8 |
| Max. torque Mx [Nm] |
5,5 |
| Max. torque My [Nm] |
4,7 |
| Max. torque Mz [Nm] |
4,7 |
| Max. feed force Fx [N] |
75 |
| Empty run actuator torque [Nm] |
0,075 |
| Torsional moment of inertia to [mm4] |
8.500 |
| Mass inertia JH per metre stroke [kg/cm²] |
0,0281 |
| Mass inertia JL per kg usable load [kg/cm²] |
0,9119 |
| Mass inertia JO [kg/cm²] |
0,1862 |
| Feed constant [mm/U] |
60 |
| Moving mass [g] |
169 |
| Moving mass at 0 mm stroke [g] |
169 |
| Carriage weight [g] |
55 |
| Weight supplement per 10 mm stroke [g] |
23 |
| Base weight at 0 mm stroke [g] |
760 |
| Trọng lượng sản phẩm [g] |
3.510 |
| Interface code actuator |
V32 |
| Closing cover material |
Die cast aluminium, painted |
| Profile material |
Aluminium wrought alloy, anodised |
| Thông tin vật liệu |
LABS containing materials included |
| Masking tape material |
Rust-free stainless steel band |
| Actuator cover material |
Die cast aluminium, painted |
| Carriage guide material |
Quenched and tempered steel |
| Guide carriage material |
Quenched and tempered steel |
| Belt pulley material |
High-alloyed stainless steels |
| Carriage material |
Aluminium die casting |
| V-belt material |
Polychloroprene with glass fibre |
