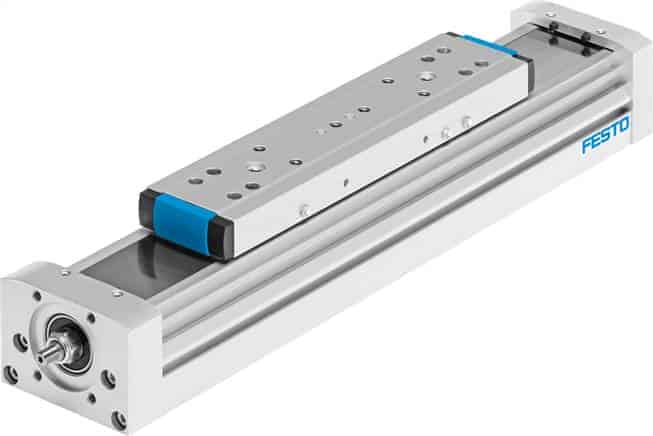

Xi lanh ELGA-BS-KF-80-600-0H-10 (8041827)
Xi lanh ELGA-BS-KF-80-600-0H-10 (8041827)
Thông số kỹ thuật xi lanh festo ELGA-BS-KF-80-600-0H-10 – Festo 8041827 spindle axis
đại lý ELGA-BS-KF-80-600-0H-10amp; – đại lý 8041827
nhà phân phối ELGA-BS-KF-80-600-0H-10amp; – xi lanh festo 8041827
| [mm] |
600 |
| size |
80 |
| Hành trình reserve [mm] |
0 |
| Spindle diameter [mm] |
15 |
| Spindle pitch [mm/U] |
10 |
| Vị trí lắp đặt |
arbitrary |
| Guide |
ball guide |
| Thiết lập |
Electro-mechanical linear axis |
| Motor type |
Step motor |
| Spindle type |
Ball screw |
| Measurement principle travel measurement system |
Incremental |
| Max. acceleration [m/s²] |
15 |
| Max. speed [1/min] |
3.000 |
| Max. speed [m/s] |
0,5 |
| Repeatability |
±0.02 mm |
| Protection category |
IP40 |
| Nhiệt độ [°C] |
-10 to 60 |
| Flat torque 2nd grade ly [mm4] |
310000 |
| Flat torque 2nd grade lz [mm4] |
977000 |
| Empty run torque at maximum movement speed [Nm] |
0,55 |
| Empty run torque at minimum movement speed [Nm] |
0,30 |
| Max. force Fy [N] |
2.500 |
| Max. force Fz [N] |
3.050 |
| Fy for theoretical lifetime of 100 km (pure guide observation) [N] |
9.200 |
| Fz for theoretical lifetime of 100 km (purely management observation) [N] |
11.224 |
| Max. torque Mx [Nm] |
36 |
| Max. torque My [Nm] |
228 |
| Max. torque Mz [Nm] |
228 |
| Mx for theoretical lifetime of 100 km (Purely management observation) [Nm] |
132 |
| My for theoretical lifetime of 100 km (Purely management observation) [Nm] |
839 |
| Mz for theoretical lifetime of 100 km (Purely management observation) [Nm] |
839 |
| Max. radial force on drive shaft [N] |
250 |
| Max. feed force Fx [N] |
1.600 |
| Torsional moment of inertia to [mm4] |
67.300 |
| Mass inertia JH per metre stroke [kg/cm²] |
0,346 |
| Mass inertia JL per kg usable load [kg/cm²] |
0,0253 |
| Mass inertia JO [kg/cm²] |
0,097 |
| Feed constant [mm/U] |
10 |
| Moving mass [g] |
1.370 |
| Additional carriage weight [g] |
1.110 |
| Weight supplement per 10 mm stroke [g] |
46,5 |
| Dynamic bending (load moved) |
0.05% of the axis length, maximum 0.5 mm |
| Static bending (load at standstill) |
0.1 % of the axis length |
| Closing cover material |
Aluminium wrought alloy |
| Profile material |
Aluminium wrought alloy |
| Thông tin vật liệu |
LABS containing materials included |
| Actuator cover material |
Aluminium wrought alloy |
| Carriage guide material |
Steel |
| Guide carriage material |
Steel |
| Carriage material |
Aluminium wrought alloy |
| Spindle nut material |
Steel |
| Spindle material |
Steel |
