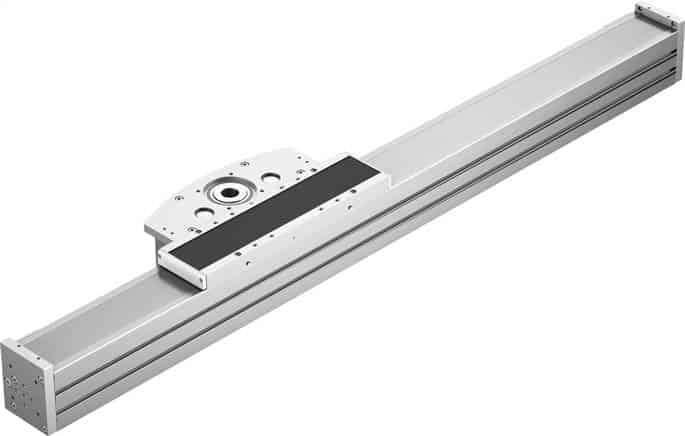

Xi lanh ELCC-TB-KF-110-600-0H-P (8082412)

Thông số kỹ thuật xi lanh festo ELCC-TB-KF-110-600-0H-P – Festo 8082412 cantilever axis

đại lý ELCC-TB-KF-110-600-0H-Pamp; – đại lý 8082412

nhà phân phối ELCC-TB-KF-110-600-0H-Pamp; – xi lanh festo 8082412

Actuator pinion effective diameter [mm]	68,755
[mm]	600
size	110
Hành trình reserve [mm]	0
V-belt separation [mm]	8
Vị trí lắp đặt	arbitrary
Guide	ball guide
Thiết lập	Elektromechanische Auslegerachse
Max. acceleration [m/s²]	30
Max. speed [m/s]	5
Repeatability	±0.05 mm
Lớp chống ăn mòn KBK	0 – No corrosion stressing
Protection category	IP20
Nhiệt độ [°C]	-10 to 60
Flat torque 2nd grade ly [mm4]	6.83057e+006
Flat torque 2nd grade lz [mm4]	4.92597e+006
Max. actuator torque [Nm]	85,9
Max. force Fy [N]	20.596
Max. force Fz [N]	20.022
Max. torque Mx [Nm]	317
Max. torque My [Nm]	2.368
Max. torque Mz [Nm]	2.286
Max. feed force Fx [N]	2.500
Mass inertia JH per metre stroke [kg/cm²]	174,9
Mass inertia JL per kg usable load [kg/cm²]	11,8
Mass inertia JO [kg/cm²]	157,1
Feed constant [mm/U]	216
Guideline running performance [km]	5.030
Lubrication interval running section depending [km]	1.000
Moving mass at 0 mm stroke [g]	10.017
Weight supplement per 10 mm stroke [g]	148
Base weight at 0 mm stroke [g]	27.299
Supplement moved mass per 10 mm stroke [g]	148
Closing cover material	Aluminium wrought alloy, anodised
Profile material	Aluminium wrought alloy, anodised
Thông tin vật liệu	LABS containing materials included RoHs compliant
Actuator head material	Aluminium wrought alloy, anodised
Guide carriage material	Wälzlagerstahl, Corrotect beschichtet
Vật liệu thân	High-alloyed stainless steels
Carriage material	Aluminium-Guss, eloxiert
V-belt clamping body material	Aluminium wrought alloy, anodised
V-belt material	Polychloroprene with glas cord and nylon covering
