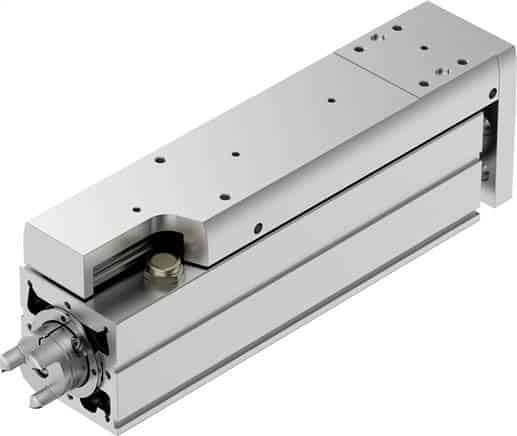

Xi lanh EGSC-BS-KF-60-150-12P (8048365)
Xi lanh EGSC-BS-KF-60-150-12P (8048365)
Thông số kỹ thuật xi lanh festo EGSC-BS-KF-60-150-12P – Festo 8048365 mini slide
đại lý EGSC-BS-KF-60-150-12P – đại lý 8048365
nhà phân phối EGSC-BS-KF-60-150-12P – xi lanh festo 8048365
| Working stroke [mm] |
150 |
| size |
60 |
| Hành trình reserve [mm] |
0 |
| Reversing play [µm] |
150 |
| Spindle diameter [mm] |
12 |
| Spindle pitch [mm/U] |
12 |
| Vị trí lắp đặt |
arbitrary |
| Guide |
ball guide |
| Thiết lập |
Electrical mini-carriages |
| Motor type |
Step motor |
| Referencing |
Fixed stopper block negative |
| Spindle type |
Ball screw drive |
| Cảm biến |
For proximity switch |
| Max. acceleration [m/s²] |
15 |
| Max. speed [m/s] |
0,6 |
| Repeatability |
±0.015 mm |
| Power-on time |
100 % |
| Lớp chống ăn mòn KBK |
0 – No corrosion stressing |
| Sound level [dB(A)] |
55 |
| Protection category |
IP40 |
| Nhiệt độ [°C] |
0 to 50 |
| Dynamic load factor fixed bearing [N] |
13.321 |
| Dynamic load factor linear guide [N] |
13.400 |
| Dynamic load factor ball screw drive [N] |
4.600 |
| Max. force Fy [N] |
4.937 |
| Max. force Fz [N] |
4.937 |
| Max. torque Mx [Nm] |
20,00 |
| Max. torque My [Nm] |
30,00 |
| Max. torque Mz [Nm] |
30,00 |
| Max. radial force on drive shaft [N] |
420 |
| Max. feed force Fx [N] |
250 |
| Guideline payload, horizontal [KGM] |
10 |
| Guideline payload, vertical [KGM] |
10 |
| Static load factor ball screw drive [N] |
8.500 |
| Static load factor linear guide [N] |
26.900 |
| Mass inertia JH per metre stroke [kg/cm²] |
0,27076 |
| Mass inertia JL per kg usable load [kg/cm²] |
0,03648 |
| Mass inertia JO [kg/cm²] |
0,08386 |
| Feed constant [mm/U] |
12 |
| Static load factor fixed bearing [N] |
7.000 |
| Guideline running performance [km] |
5.000 |
| Maintenance interval |
Lifetime lubrication |
| Moving mass at 0 mm stroke [g] |
675 |
| Weight supplement per 10 mm stroke [g] |
95 |
| Base weight at 0 mm stroke [g] |
1.555 |
| Trọng lượng sản phẩm [g] |
2.980 |
| Supplement moved mass per 10 mm stroke [g] |
40 |
| Loại buộc |
with female threads |
| Interface code actuator |
T42 |
| Thông tin vật liệu |
LABS containing materials included |
| Carriage guide material |
Roller bearing steel |
| Guide carriage material |
Roller bearing steel |
| Vật liệu thân |
Aluminium wrought alloy, anodised |
| Joch plate material |
Aluminium wrought alloy, anodised |
| Vật liệu thanh pít-tông |
High-alloyed stainless steels |
| Carriage material |
Aluminium wrought alloy, anodised |
| Spindle nut material |
Roller bearing steel |
| Spindle material |
Roller bearing steel |
