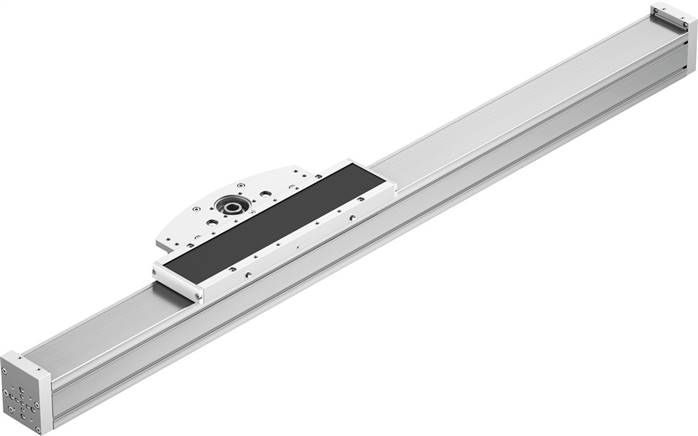

ELCC-TB-KF-70-200-0H-P0 – Festo 8082392 cantilever axis

ELCC-TB-KF-70-200-0H-P0amp; – đại lý 8082392

ELCC-TB-KF-70-200-0H-P0amp; – xi lanh festo 8082392

Actuator pinion effective diameter [mm]	30,558
[mm]	200
size	70
Hành trình reserve [mm]	0
V-belt separation [mm]	3
Vị trí lắp đặt	arbitrary
Guide	ball guide
Thiết lập	Elektromechanische Auslegerachse
Max. acceleration [m/s²]	50
Max. speed [m/s]	5
Repeatability	±0.05 mm
Lớp chống ăn mòn KBK	0 – No corrosion stressing
Protection category	IP20
Nhiệt độ [°C]	-10 to 60
Flat torque 2nd grade ly [mm4]	959740
Flat torque 2nd grade lz [mm4]	928739
Max. actuator torque [Nm]	9,2
Max. force Fy [N]	9.680
Max. force Fz [N]	9.406
Max. torque Mx [Nm]	104
Max. torque My [Nm]	826
Max. torque Mz [Nm]	797
Max. feed force Fx [N]	600
Mass inertia JH per metre stroke [kg/cm²]	14,7
Mass inertia JL per kg usable load [kg/cm²]	2,3
Mass inertia JO [kg/cm²]	10,6
Feed constant [mm/U]	96
Guideline running performance [km]	5.010
Lubrication interval running section depending [km]	1.000
Moving mass at 0 mm stroke [g]	3.210
Weight supplement per 10 mm stroke [g]	63
Base weight at 0 mm stroke [g]	7.960
Supplement moved mass per 10 mm stroke [g]	63
Closing cover material	Aluminium wrought alloy, anodised
Profile material	Aluminium wrought alloy, anodised
Thông tin vật liệu	LABS containing materials included RoHs compliant
Actuator head material	Aluminium wrought alloy, anodised
Guide carriage material	Wälzlagerstahl, Corrotect beschichtet
Vật liệu thân	High-alloyed stainless steels
Carriage material	Aluminium-Guss, eloxiert
V-belt clamping body material	Aluminium wrought alloy, anodised
V-belt material	Polychloroprene with glas cord and nylon covering
